Payloads & Data Products

Built for Condor platforms. Tailored for each mission.

Muon-built payloads integrate directly with the spacecraft platform, ground segment, and each other - delivering calibrated, multi-level data products to your cloud environment without interface surprises or schedule risk.

Electro-Optical / Infrared Payloads.

Quickbeam EO/IR Payloads

Precision imaging built for the most demanding Earth observation missions — Multispectral electro-optical/infrared (EO/IR) payload family featuring visible and cryo-cooled infrared cameras with a precision scan-mirror assembly that enables cross-track imaging to achieve wide-area persistent surveillance.
Detect, characterize, discriminate. High-performance EO/IR for any orbit — Our EO/IR payloads support custom sensing modes including wide-area thermal monitoring, multispectral target detection, and persistent ground surveillance - adaptable across mission requirements without redesigning the underlying hardware.
Electro-Optical / Infrared Payloads.

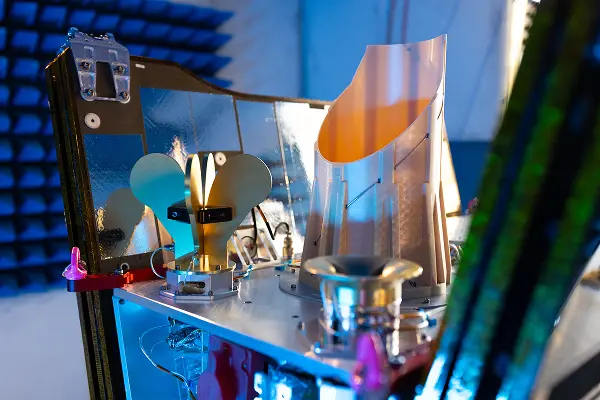

Radio Frequency Payloads

RadioCore-S RF Payloads

A powerful platform, reconfigurable for any RF sensing mission — A Software-defined Radio Frequency sensing instrument built on the same RadioCore platform that handles spacecraft communications. With tightly coupled RF system-on-a-chip, high-speed converters, and onboard processing, RadioCore-S digitizes multiple wideband channels simultaneously, reconfigurable in software for different frequencies, bandwidths, and waveforms.
Sense, detect, geolocate. Software-defined RF missions — RadioCore-S supports custom sensing modes including wideband spectrum monitoring, signal detection, and geolocation, all without redesigning the underlying electronics.
Radio Frequency Payloads

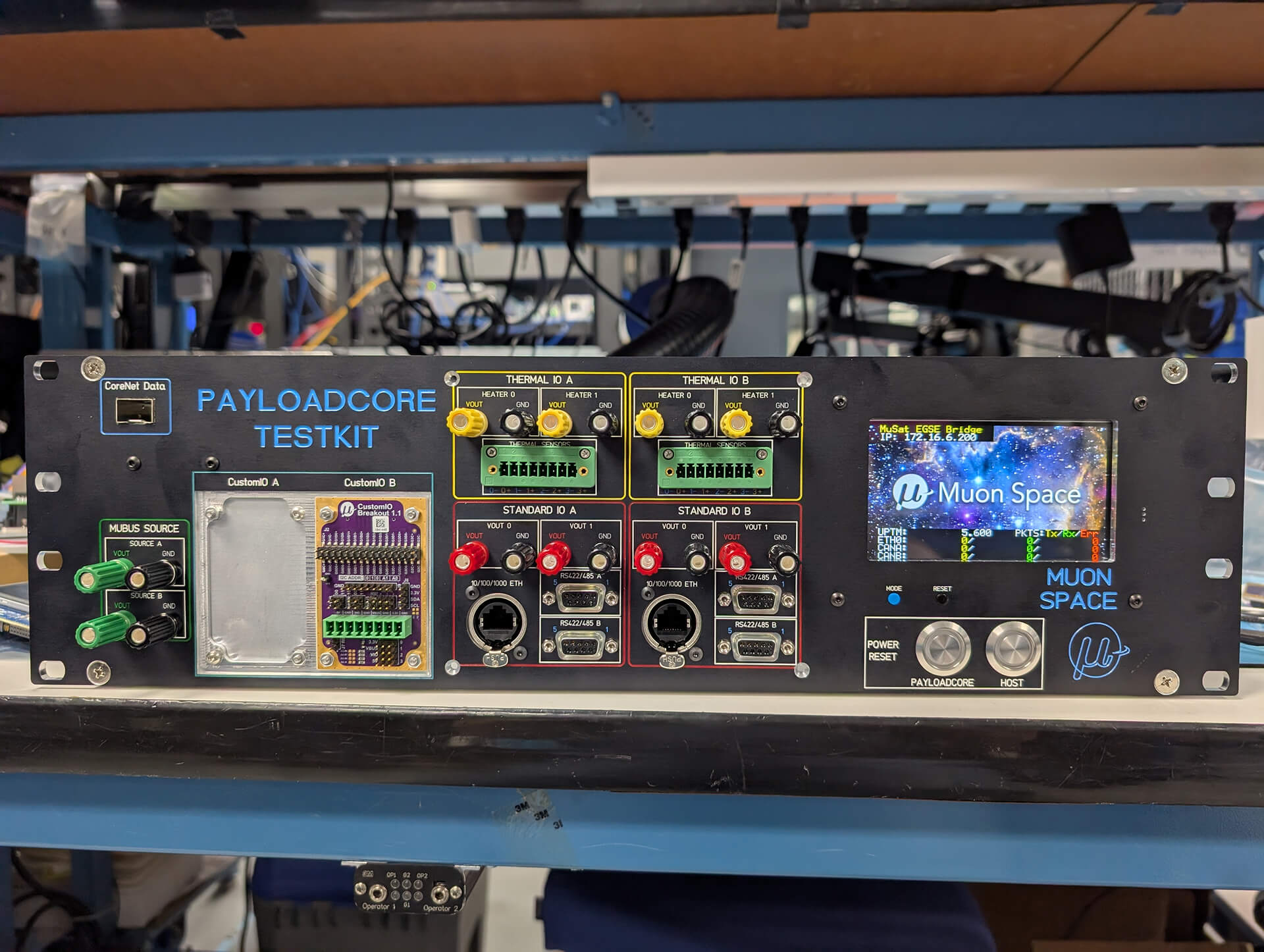

TestKit

Flight-like integration, months before hardware delivery.

A ground-based integration environment built around a flight-like PayloadCore - with the same standard interfaces, onboard processing, and software suite the payload will use on orbit.

Power, data, and comms interfaces are validated against ICD specifications before hardware ships. Payload integration becomes a continuous process from program kickoff, not a bottleneck at the end.

TestKit

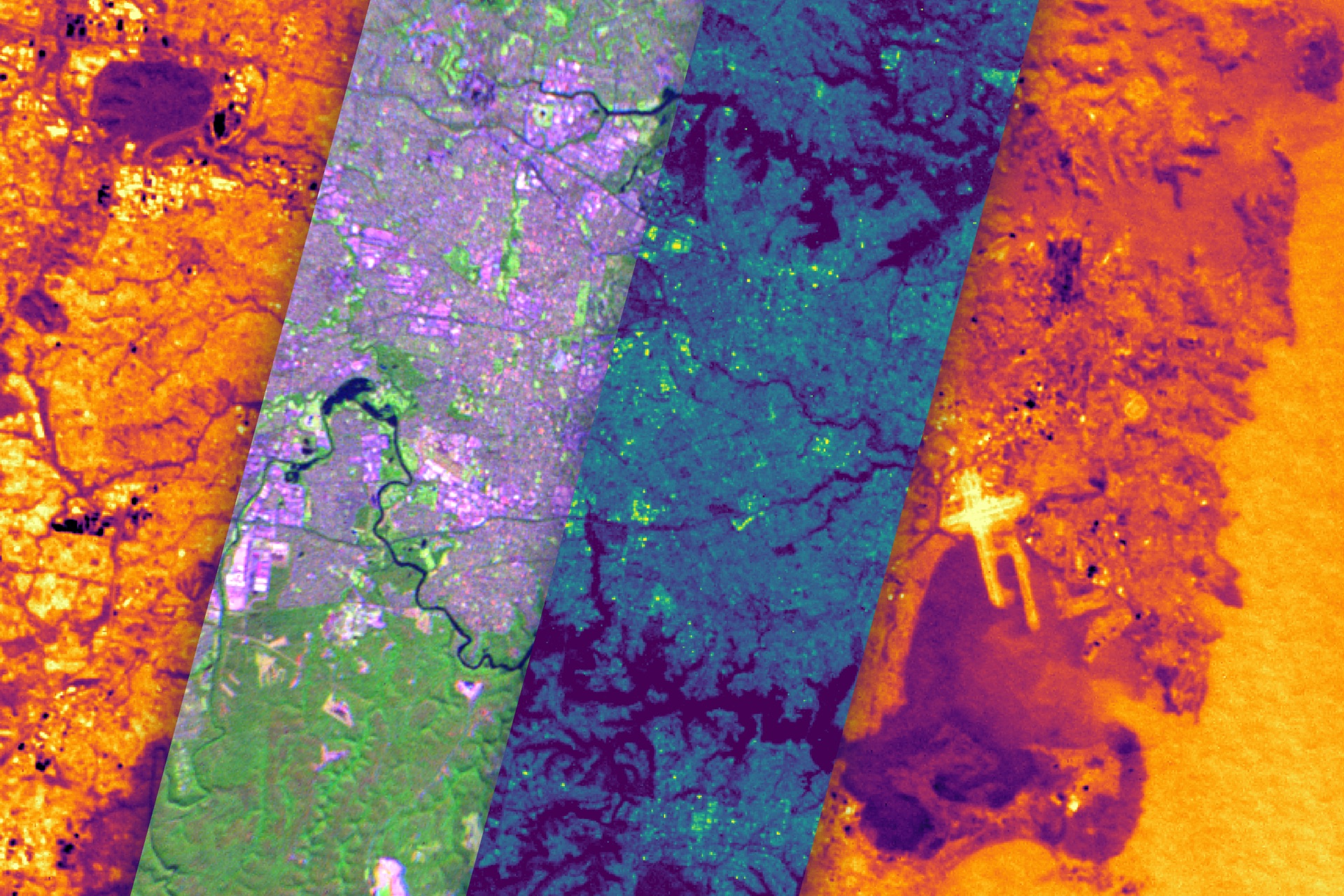

Data Products

Multispectral Infrared (MSIR) Data

Broad-area thermal intelligence across six channels. MSIR Data provides multispectral infrared imagery delivering thermal and environmental intelligence.

  • Six channels across Red, Near-Infrared (NIR), Short-Wave Infrared (SWIR), Mid-Wave Infrared (MWIR), and Long-Wave Infrared (LWIR).
  • 1,500 km swath scans: enables broad-area thermal characterization and target discrimination
  • Data products: available as L1B single-band frames and L1C orthomosaic tiles.

From daily coverage today to hourly revisit by 2030. MSIR imagery is collected by Muon-built constellations, purpose-built for global wildfire detection and thermal monitoring.

  • Protoflight satellite: launched in March 2025, provides daily global coverage
  • Initial operational capability (IOC): deployment in 2026, brings twice-daily revisit
  • Full operational capability (FOC): progressive constellation buildout continuing through 2029 to achieve hourly global revisit

Data Products

Whether you’re bringing your own payload or starting from scratch, we’ve built the infrastructure to support both.
